BX battery forklift by Unicarriers

Nissan battery forklift by Unicarriers;
BX series 1.5 - 3.0 tons from Unicarriers Japan;
Capacity: 1,500 kgs - 3,000 kgs;
Load center: 500 mm;
Lift height: 3,000 mm - 6,000 mm;
Nissan battery forklift - Unicarriers Japan
Nissan battery forklift - Unicarriers Japan
Perfect balance
Eco-friendly, Economical and Easy to Operate: Get Outstanding Productivity Results with the New BX Series!
Featuring a superlative range of cutting-edge technologies, the BX Series has evolved into the ultimate in zero-emission electric-powered forklifts. This means that in addition to class-leading performance characteristics such as long operating hours, superb power, and high traveling speeds, the BX Series is now more environmentally friendly, easier to operate, and economical. Balancing safety and quality perfectly with remarkable efficiency, the BX Series is the next generation in electric-powered forklifts destined to become the first choice for any materials handling need.

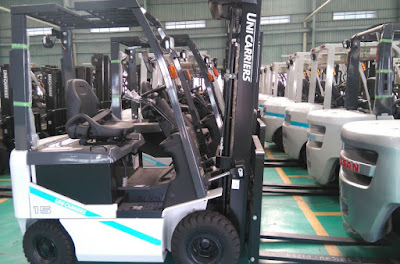

Nissan battery forklift by Unicarriers
Nissan battery forklift by Unicarriers
Xe nâng điện 1.5 – 2.5 tấn dòng tiêu chuẩn.
Model
Capacity
Width
Length
Height
Turning
Radius
J1B1L15U
1500kg
1120mm
2030mm
2120mm
1750mm
J1B1L18U
1750kg
1120mm
2075mm
2120mm
1780mm
T1B2L20U
2000kg
1165mm
2260mm
2120mm
1960mm
T1B2L25U
2500kg
1165mm
2325mm
2120mm
2000mm

Nissan Unicarriers forklift - Long wheels base.
Model
Capacity
Width
Length
Height
Turning
Radius
JG1B1L15U
1500kg
1120mm
2030mm
2120mm
1750mm
JG1B1L18U
1750kg
1120mm
2075mm
2120mm
1780mm
TG1B2L20U
2000kg
1165mm
2260mm
2120mm
1960mm
TG1B2L25U
MCT
G1B2L30U
2500kg

3000kg
1165mm

1100mm
2325mm

2365mm
2120mm

2220mm
2000mm

2060mm

Nissan battery forklift high performance.
Model
Capacity
Width
Length
Height
Turning
Radius
J1B1H15U
1500kg
1120mm
2030mm
2120mm
1750mm
J1B1H18U
1750kg
1120mm
2075mm
2120mm
1780mm
T1B2H20U
2000kg
1165mm
2260mm
2120mm
1960mm
T1B2H25U
2500kg
1165mm
2325mm
2120mm
2000mm

Performance
Incredible performance and exceptional efficiency make the BX Series a world-class performer in materials handling.
Battery forklift - Performance
Battery forklift - Performance

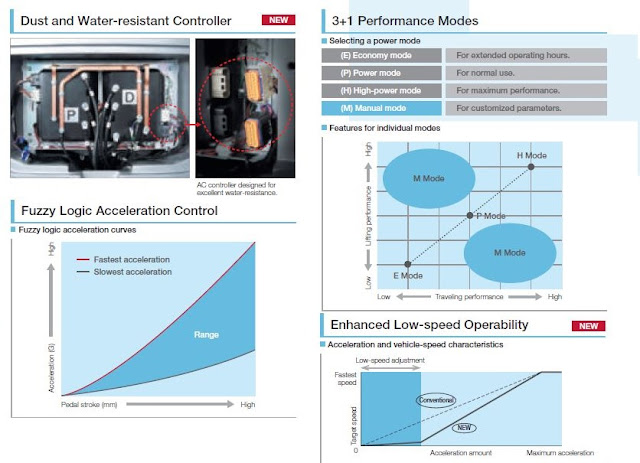

High Traveling Speed: Thanks to the adoption of an AC motor, the maximum traveling speed of the BX Series has been improved to an impressive level.
High Lifting Speed: An AC motor also gives the BX Series higher lifting speeds, enhancing productivity and helping to get more work done faster.
Dust and Water-resistant Controller: NEW
The new AC controller has an IP54* rating due to special connectors that help protect it against dirt and water ingress.
3+1 Performance Modes: In addition to the 3 pre-set modes, the operator can manually adjust both traveling and lifting performance to desired levels via the Manual mode.
Fuzzy Logic Acceleration Control: Precise microprocessor control provides fast acceleration for long stretches while slowing acceleration for final approaches to loading points.
Enhanced Low-speed Operability NEW : Operating characteristics of the accelerator pedal have been dramatically improved to ensure precise control during inching maneuvers.
Smooth-run System (option): Two different types of accumulators absorb the shocks transmitted from the road surface, making both load handling and travel smoother. This offers extra benefits when working with delicate loads on rough surfaces.
Improved Restarting on Inclines NEW
Improved regenerative performance helps to ensure smoother restarting after the accelerator pedal is released on an incline.

Easy to operate
The outstanding performance of the BX series and resulting productivity are due to a variety of ergonomic functions that help ensure materials handling operations are accomplished in a quick and smooth manner.
Nissan forklift - easy to operate
Nissan forklift - easy to operate
Multifunctional LCD Monitor: The large, easy-to-see LCD monitor allows various aspects of vehicle status such as speed, battery charge and performance settings as well as several indicators and warning lights to be checked at a glance. To enhance security, there is also a PIN access system that enables up to five codes to be preset depending on work conditions. And to complement the central management of vehicle data, the self-diagnosis system helps to reduce downtime for quicker maintenance in the event of malfunction.
Load Meter (option) NEW : Load weight is clearly displayed on the LCD monitor to help prevent overloading. The operator is notified by an indicator and alarm buzzer when loads exceed preset limits. Lifted load weights are displayed for 5 seconds" during traveling speeds of less than 3km/h and weight is indicated in 20kg increments starting from 100kg*2. * 1: The length of load display time can be adjusted in the Dealer Mode. * 2: Load weight of less than 100kg will be displayed as 0kg. Note: Displayed weight is approximate.
Three-stage Full-free Mast Carriage for Expansive Visibility NEW
Superior forward visibility is now realized by integrating a wide view finger bar into the single-row, three-stage full-free mast carriage. Note: Forks can be converted to a conventional finger bar type by changing the attachment.
Wide-open Foot Space: Ample legroom and the lower floor height provide a generous amount of space for the operator, making it easier to enter and exit the forklift.
Soft Landing System* : Even if the operator keeps the control lever down, the soft landing function will help ensure that the forks will smoothly decelerate just before reaching the ground. *Available only for the 2W mast
Foot Parking Brake: An automobile-style foot parking brake located on the floorboard improves convenience and the carefully designed hand release helps to ensure safer operation.

3 Eco-friendly and economical
In addition to the eco-friendly characteristics expected of an electric-powered forklift, the BX Series is fully equipped with features designed to ensure impressive energy savings and economical operation.
Five Regenerative Functions: Advanced regenerative technologies reclaim energy efficiently from a variety of operations. There are a total of five regenerative functions that contribute to lower power consumption and longer operation hours.
1: Switchback regeneration; 2: Foot brake regeneration; 3: Accelerator-off regeneration; 4: Controlled rollback regeneration; 5: Lifting/lowering regeneration
Long Operating Hours: Complementing the five regenerative functions offered by the BX Series, the following features help to extend operating hour • Power steering with load sensor: Diverts oil to the PS hydraulic circuit only when power steering is active. • Automatic power cut-off function: Automatically cuts c power if the vehicle is not operated for 15 minutes.
Single Control Lever (option): Our original Single Control Lever enables simultaneous lifting and tilting operations for greater productivity (gun-grip double control levers are also available).
Tilt Leveling System (option*) A simple press of a button on the mast control lever brings the forks automatically to the horizontal position. * Available with the Load Meter.
Automobile-style Light / Turn-signal Lever and Small-stroke F/R Lever (Electric Type)
The automotive influence seen in the design of the BX Series is evident in the easy-to-operate light/turn-signal lever and small-stroke F/R lever.
Small-diameter Steering Wheel with Tilt Adjustment: A smaller, tilt-adjustable power steering wheel helps to provide the ideal driving position while also improving forward visibility.
Real-time Energy Consumption Indicator: NEW The BX Series is equipped with an indicator that displays in real-time the amount of energy being consumed during traveling and lifting operations. The regeneration icon is also displayed during regenerative functions.

Reassuring safety
A broard range of safety features help protect the operator and those in the surrounding environment for greater confidence.

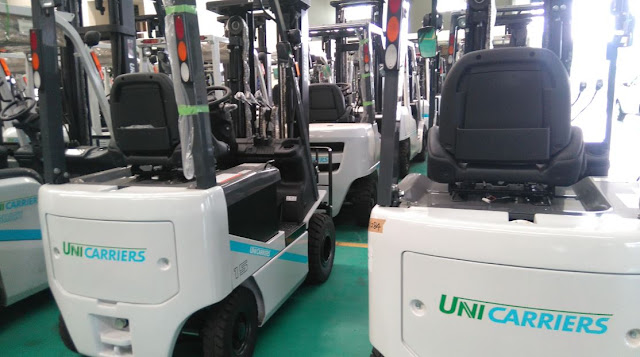

Safe with Unicarriers battery forklift
Safe with Unicarriers battery forklift

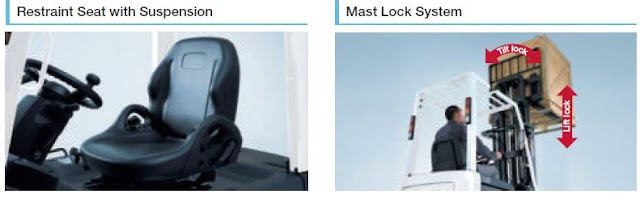

Restraint Seat with Suspension: Offering ample suspension capacity, this seat ensures comfortable operation. And to help enhance safety, a seat-actuated warning buzzer* will activate when the operator leaves the seat without engaging the parking brake. The seat design of Cushion Tire Models vary. *There is a three-second delay before the warning buzzer activates.
Mast Lock System: To help prevent accidents involving the mast and forks, the Mast Lock System*, standard on all models, automatically locks lifting and tilting operations when the operator leaves the seat. *There is a three-second delay before the Mast Lock System activates.
Swaying Control System: Our exclusive Swaying Control System*, which provides confident driving control when turning the forklift, Is standard equipment. The simple design of this system helps to enhance reliability. *The Swaying Control System, however, does not eliminate the possibility of the forklift tipping over.
BX series Swaying Control System
BX series Swaying Control System
PIN-code Access: A standard four-digit PIN access system reduces unauthorized forklift usage. Up to five PIN-codes can be registered. It also allows the readout of operating hours and performance modes for each code or operator.
Pump Cut and Low-voltage Lock: These features inform the operator of remaining battery capacity to prevent over discharging of the battery.
1., The LCD monitor displays the battery capacity icon and the "CHARGE IMMEDIATELY" indication.
2., Ten minutes after the first indication, a second indication will be displayed along with a buzzer alarm to notify the operator. Lifting operations will also be terminated via a pump cut.
3., If an operator continues to use the forklift and battery voltage reaches the preset limit, the forklift will automatically stop traveling and lifting operations to protect the battery  serious damage.
