Unicarriers Japan 1F6 Series 6 - 10 tons

UNICARRIERS DIESEL FORKLIFT,
The 1F6 series 6.0 - 10.0 tons,
Load capacity: 6,000 kgs - 10,000 kgs,
Load center: 600mm
Lift height: 3,000 mm - 7,000 mm,
Power: Isuzu diesel engine 6BG1,
Unicarriers Japan 6.0 - 10.0 tons
Unicarriers Japan 6.0 - 10.0 tons
The ultimate in operability is now available.
The 1 F6 Series is packed with thoughtful design features that let the truck deliver the best performance in every load-handling situation. The ultimate operability, as well as superb operator comfort and easy serviceability will relieve forklift operators from all types of stress associated with load-handling operations.

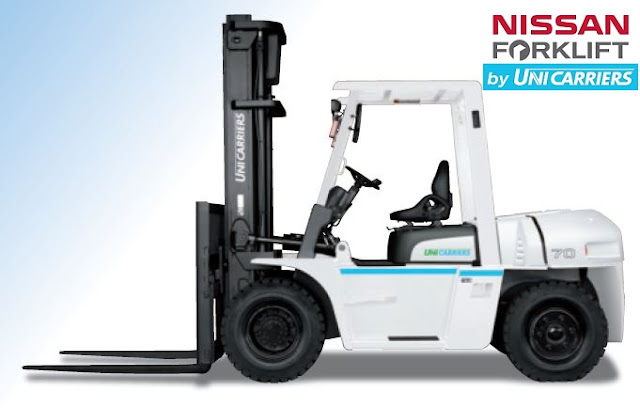

Unicarriers forklift 6.0 - 10.0 tons
Unicarriers forklift 6.0 - 10.0 tons

Diesel forklift truck 6 - 10 tons from Unicarriers Japan,
Model
Load capacity
Overall width
Overall length
Overall height
Turning radius
1F6F60U
6000kg
1995mm
3535mm
2450mm
3300mm
1F6F70U
7000kg
1995mm
3600mm
2450mm
3360mm
1F6F80U
8000kg
2165mm
3940mm
2560mm
3650mm
1F6F100U
10000kg
2245mm
4255mm
2560mm
3900mm

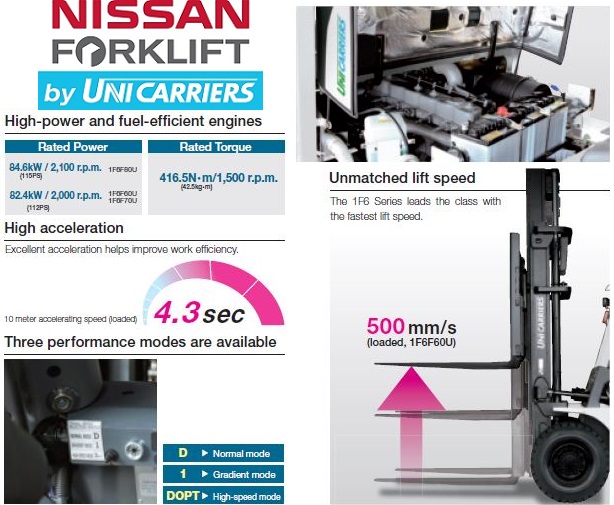

Powerful: Super performance
High-power and fuel-efficient engines; The standard, 6.5-liter, high-power engine is powerful yet fuel efficient, with a fuel consumption of 232 g/kW.h. It also meets the 2007 EPA (Tier 1) emission regulations.
High acceleration: Excellent acceleration helps improve work efficiency.
Three performance modes are available. The operator can optimize the performance of the truck to match the specific job requirements, such as carrying loads, traveling a long distance, or needing to climb a steep gradient.
Unicarriers forklift - Super performance
Unicarriers forklift - Super performance

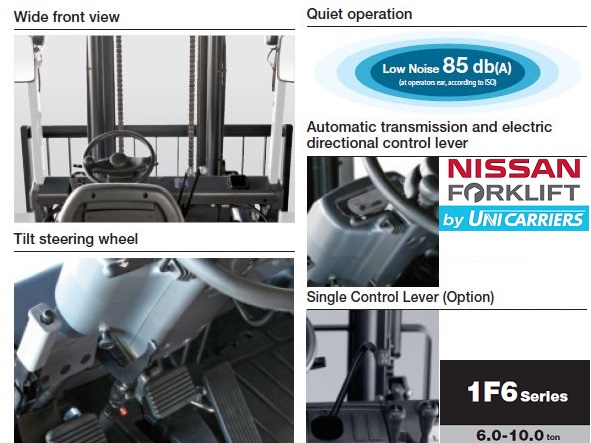

Operator Comfort
Designed with the operator in mind, wide front view. The super wide-view fork carrier offers an unobstructed, wide front view.
Quiet operation: The 1F6 Series offers many improvements that reduce operating noise, including a low noise engine, providing an unprecedented level of operator comfort.
Automatic transmission and electric directional control lever: The automatic transmission is standard for smooth starts and acceleration, eliminating the chore of shifting gears. The electric directional control lever makes it easy to change the direction of travel.
Tilt steering wheel: The steering wheel with tilt adjustment helps to provide the ideal operating position.
Unicarriers Japan - Operator Comfort
Unicarriers Japan - Operator Comfort
Safety: Further enhanced safety
Rugged, carefully designed mast: The mast assembly on the 1 F6 Series has been designed for more safety and more ruggedness, paying special attention to the details such as the number of rollers and the cross section design of the inner mast channels. This consideration of safety has provided greatly improved reliability as well as easier maintenance.
Safety device on the parking brake lever The light-touch parking brake lever has a safety device that keeps the lever from being released until the button on the end is pushed.
The instrument panel is easy to see: The instrument panel is designed for better visibility under any circumstances. The indicators show up brightly with long-life LEDs.

Thoughtful design: Attention to detail provides reliability
Easy to open engine hood: The hood has a gas damper so the operator can open and close it easily for quick access to the engine compartment.
Dash integrated cup and pen holder: Cup and pen holders are provided as standard, for your convenience.
Boltless floorboards: The boltless floorboards are easy to remove and reinstall, without having to use any tools, for better truck serviceability.
Snap-fit hydraulic oil filler cap: The hydraulic oil filler cap is a snap-fit type which allows easy removal and reinstallation. Attention to detail has been paid in order to assure better work efficiency.

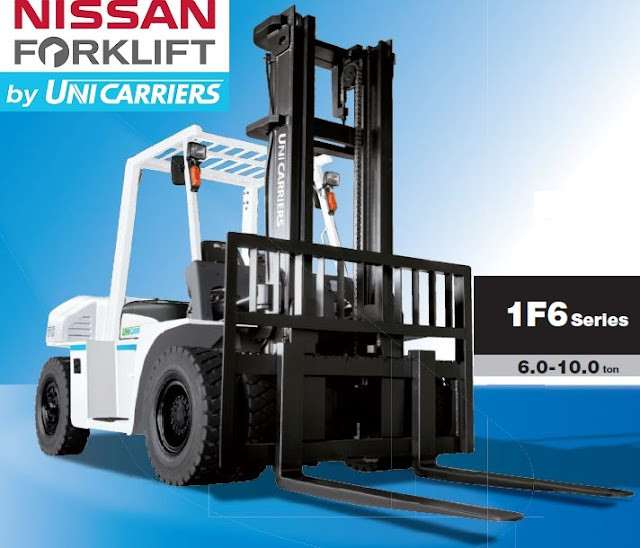

Diesel forklift 6 - 10 tons - Unicarriers Japan
Diesel forklift 6 - 10 tons - Unicarriers Japan
OPTIONAL EQUIPMENT AND ACCESSORIES
• Catalytic Muffler
• Central Greasing
• Cold Weather Spec
• Fire Extinguisher
• Heater
• Overhead Exhaust
• Plate-fin type radiator
• Port relief valves
• Rear working light
• Right hand direction change
• Solid tires
• Spark arrest muffler
• Speedometer
• Steel Cabin
• Steel net on head guard
• Strober light
• Single Control lever
• Tilt cylinder boots
• Weather separater
AND Others on request.

LOAD HANDLING ATTACHMENTS

• Extension Forks • Fork positioner • Hinged fork • Bale Clamp • Long forks • Ram • Side shift etc.
